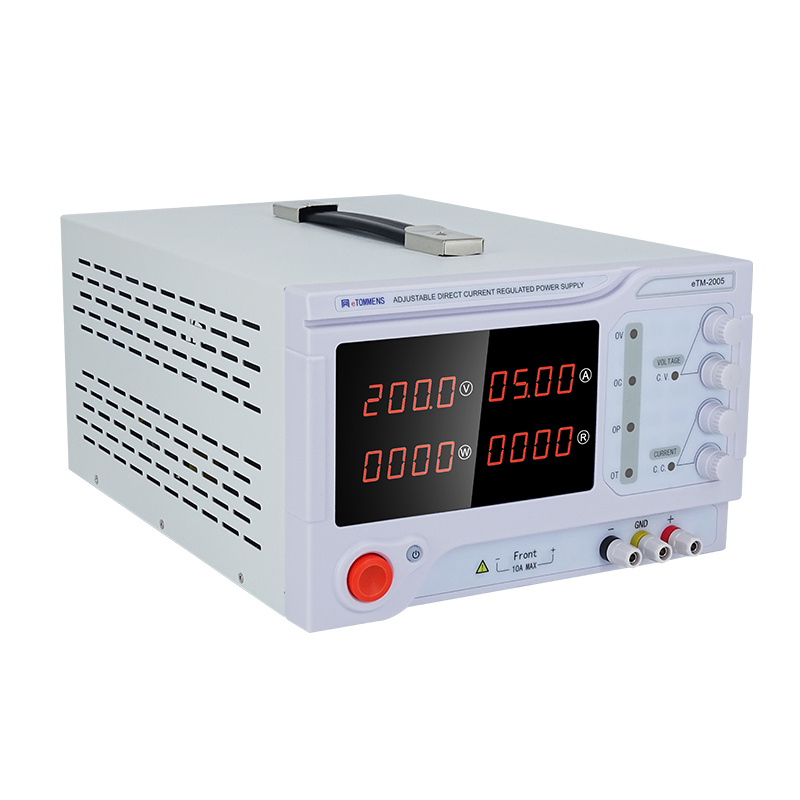

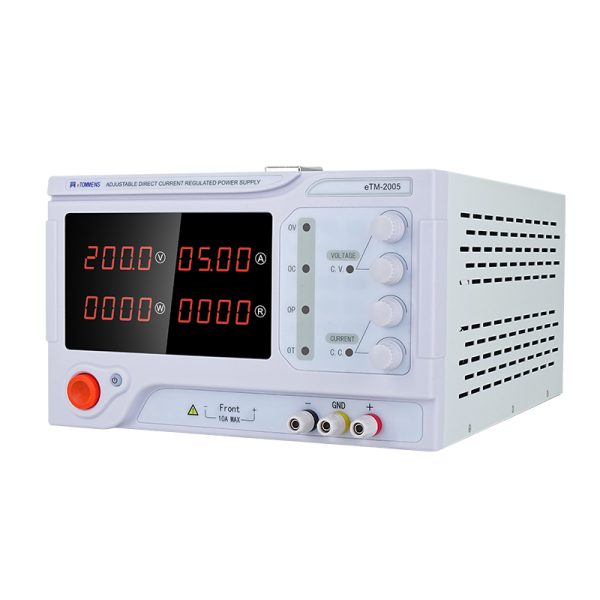

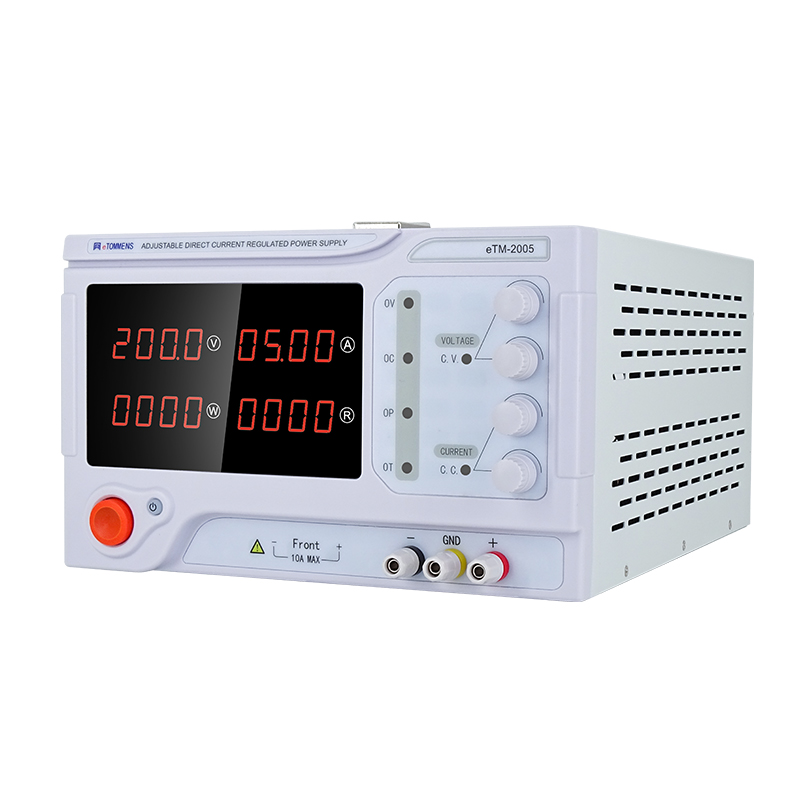

eTM-2005, 4-Kob DC Benchtop Power Supply Adjustable 200V 5A with 4-Digit LED Display, Output Enable/Disable Button, Encoder Coarse & Fine Adjustment Knob

eTM-2005, 4-Kob DC Benchtop Power Supply Adjustable 200V 5A with 4-Digit LED Display, Output Enable/Disable Button, Encoder Coarse & Fine Adjustment Knob

Original price was: $899.00.Current price is: $499.00.

Voltage and current can be preconfigured
LED digital display
ON/OFF unique switch
Rear SENSE compensation interface (optional)
Support powerful protection function
Overvoltage protection
Overcurrent protection
Overpower protection
Overheating protection
Short circuit protection
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: On/Off/Read
Low noise and low ripple
Automatic carry of the decimal point
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)
Intelligent temperature control fan
Standard configuration: power cord, certificate, output terminal, AC input voltage 220V (110V optional below 1200W)

Shipping Information: Delivery to the US and Europe takes 10-15 days via UPS, DHL, Royal Mail, etc.
Customer Support: Our customer service is available 24/7. Contact us anytime at [email protected] for assistance.
Shopping Security: Benefit from secure payment options, privacy assurance, reliable logistics, and purchase safeguards.

Additional information

Current	5A
Voltage	200V
Wattage	1000-1500W

Product Parameters

Model	eTM-2005
Input voltage	AC 220V + 10% (Optional: Fixed AC 110V input; or AC 110V/220V Toggle Input )
Input frequency	50Hz/60Hz
Output voltage	Constant voltage value range: 0-200V, continuously adjustable
Output current	Constant current value range: 0-3A, continuously adjustable
Way of working	Automatic switching between constant voltage and constant current mode
Constant current indication	CC, red LED indicator
Constant pressure indication	CV, green LED indicator
Display resolution	Four-digit display: voltage 100mV, current 10mA
Load regulation	≤0.5%
Ripple & noise	≤1% (valid values)
Protective function	Over voltage, over temperature, short circuit current limit protection
Working environment	-10-40 celsius relative humidity<80%
Storage temperature	-20-40 celsius relative humidity<80%
Height above sea level	≤2000m
Physical dimension	330250155mm (LengthWidthHeight)mm
Weight	5KG
Category	200V Benchtop DC Power Supply, HV Bench DC Power Supply

Product Description

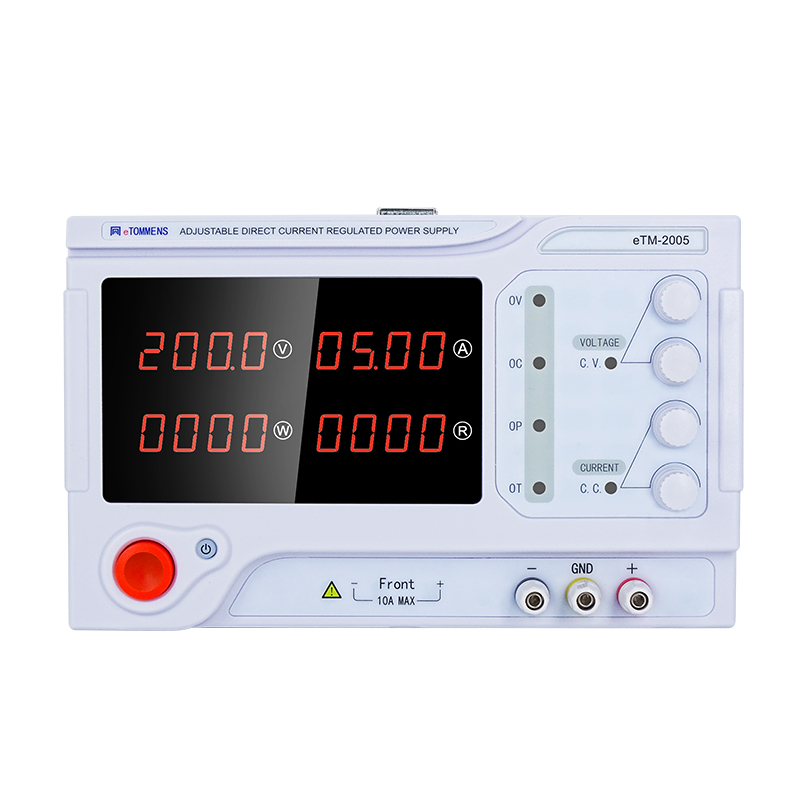

Introduction to Front Panel

Introduction to Back Panel

Dimensions Drawing

Specifications

Power Parameters
Model	Voltage	Current
eTM-1005	0~100V	0~5A
eTM-1560	0~15V	0~60A
eTM-2050	0~20V	0~50A
eTM-3020	0~30V	0~20A
eTM-3030	0~30V	0~30A
eTM-3050	0~30V	0~50A
eTM-3060	0~30V	0~60A
eTM-3080	0~30V	0~80A
eTM-5020	0~50V	0~20A
eTM-5030	0~50V	0~30A
eTM-5050	0~50V	0~50A
eTM-5060	0~50V	0~60A
eTM-6010	0~60V	0~10A
eTM-6015	0~60V	0~15A
eTM-6020	0~60V	0~20A
eTM-6030	0~60V	0~30A
eTM-6050	0~60V	0~50A
eTM-6060	0~60V	0~60A
eTM-8030	0~80V	0~30A
eTM-10010	0~100V	0~10A
eTM-10020	0~100V	0~20A
eTM-10030	0~100V	0~30A
eTM-12020	0~120V	0~20A
eTM-12030	0~120V	0~30A
eTM-30100	0~30V	0~100A
eTM-30150	0~30V	0~150A
eTM-30200	0~30V	0~200A
eTM-1505	0~150V	0~5A
eTM-2002	0~200V	0~2A
eTM-2003	0~200V	0~3A
eTM-2005	0~200V	0~5A
eTM-3002	0~300V	0~2A
eTM-3005	0~300V	0~5A
eTM-4002	0~400V	0~2A
eTM-4003	0~400V	0~3A
eTM-4005	0~400V	0~5A
eTM-5005	0~500V	0~5A
Display resolution
Voltage	<100V:10mV; ≥100V:100mV
Current	<100A:10mA; ≥100A:100mA
Set precision
Voltage	0.1V
Current	0.1A
Size
Fuselage size	<2400W model: 330(D)×250(W)×155(H)mm / ≥2400W model: 410(D)×250(W)×155(H)mm
Package size	<2400W model: 420(D)×310(W)×220(H)mm / ≥2400W model: 497(D)×310(W)×220(H)mm
Weight
Net weight	<2400W model: about 5kg / ≥2400W model: about 7.5kg
Ripple and noise
≤1% (valid values)
Output parameters: (When using this specification, make sure to turn on the system for more than 15 minutes)
