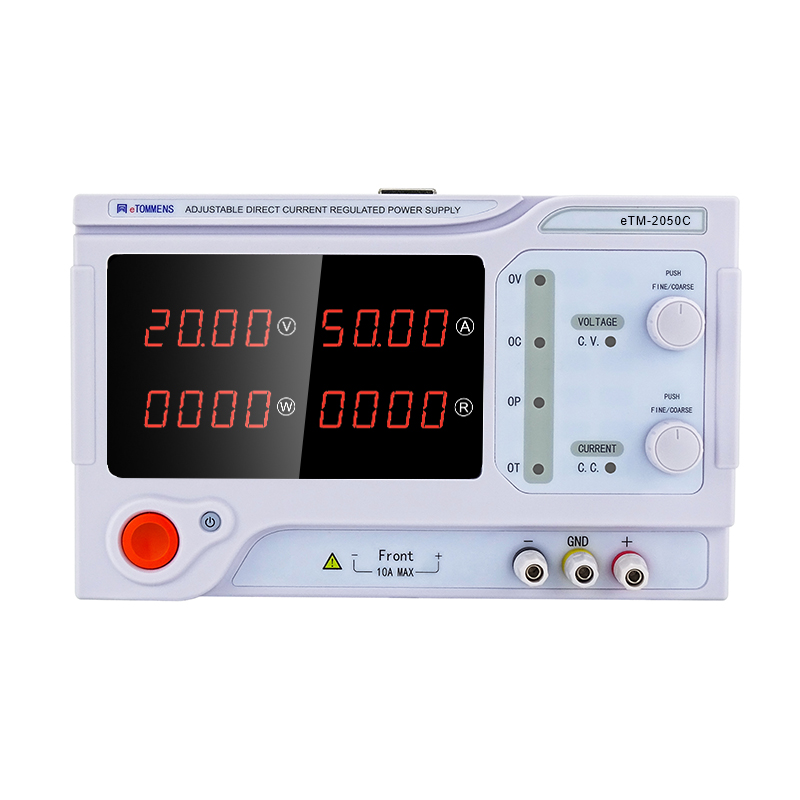

eTM-2050C, 2-Kob 0-20V 0-50A Bench DC Variable Power Supply with 4-Digit LED Display, Output Switch Control, CV/CC Mode Automatic Conversion

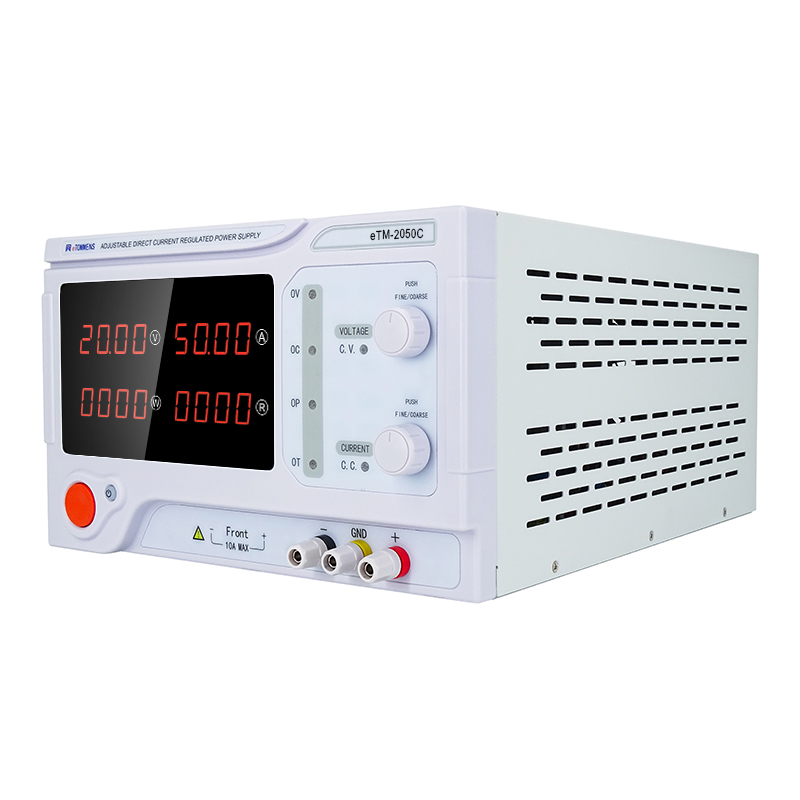

eTM-2050C, 2-Kob 0-20V 0-50A Bench DC Variable Power Supply with 4-Digit LED Display, Output Switch Control, CV/CC Mode Automatic Conversion - Image 2

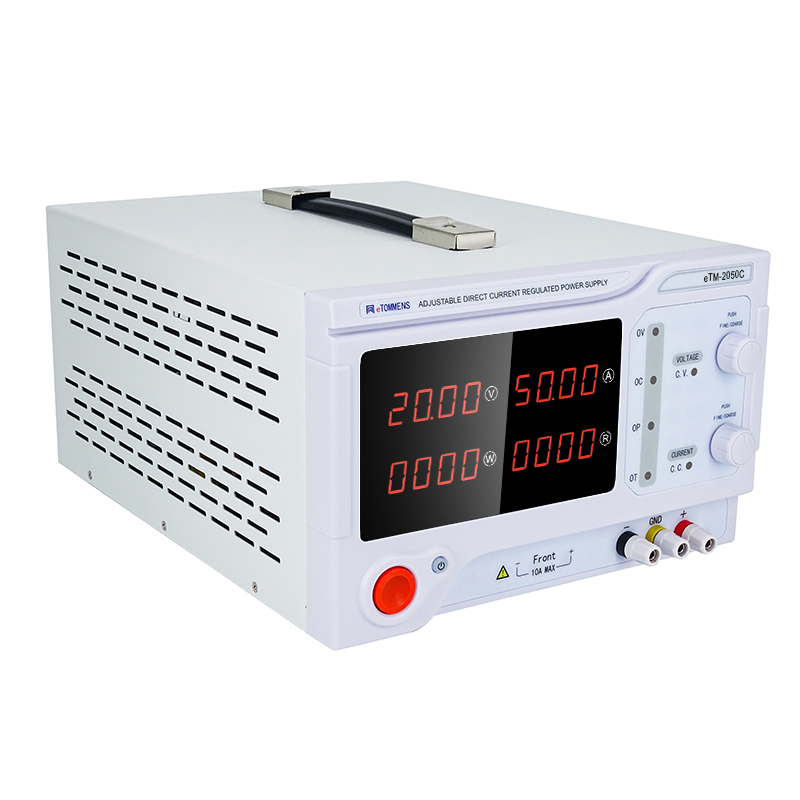

eTM-2050C, 2-Kob 0-20V 0-50A Bench DC Variable Power Supply with 4-Digit LED Display, Output Switch Control, CV/CC Mode Automatic Conversion - Image 3

eTM-2050C, 2-Kob 0-20V 0-50A Bench DC Variable Power Supply with 4-Digit LED Display, Output Switch Control, CV/CC Mode Automatic Conversion

Original price was: $699.00.Current price is: $499.00.

Voltage and current can be preconfigured
LED digital display
ON/OFF unique switch
Rear SENSE compensation interface (optional)
Support powerful protection function
Overvoltage protection
Overcurrent protection
Overpower protection
Overheating protection
Short circuit protection
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: programmable
Low noise and low ripple
Automatic carry of the decimal point
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)
Intelligent temperature control fan
Standard configuration: power cord, certificate, output terminal, AC input voltage 220V (110V optional below 1200W)

AC Input Voltage *

Output line *

SENSE compensation serial port/External Trigger Interface *

serial port *

Shipping Information: Delivery to the US and Europe takes 10-15 days via UPS, DHL, Royal Mail, etc.
Customer Support: Our customer service is available 24/7. Contact us anytime at [email protected] for assistance.
Shopping Security: Benefit from secure payment options, privacy assurance, reliable logistics, and purchase safeguards.

Additional information

Current	50A
Voltage	20V
Wattage	1000-1500W

Product Parameters

Model	eTM-2050C
Input voltage	AC 220V + 10% (Optional below 1200W: Fixed AC 110V input )
Input frequency	50Hz/60Hz
Output voltage	Constant voltage value range: 0-20V, continuously adjustable
Output current	Constant current value range: 0-50A, continuously adjustable
Way of working	Automatic switching between constant voltage and constant current mode
Display resolution	Four-digit display: voltage 10mV, current 10mA
Load regulation	≤0.5%
Ripple & noise	≤1% (valid values)
Protective function	Over voltage, over temperature, short circuit current limit protection
Working environment	5-40 celsius; relative humidity<80%
Storage temperature	5-30 celsius; relative humidity<60%
Height above sea level	≤2000m
Physical dimension	330250155mm (LengthWidthHeight)mm
Weight	5KG

Product Description

Introduction to Front Panel

Introduction to Back Panel

Dimensions Drawing

Specifications

Power Parameters
Model	Voltage	Current
eTM-1005C	0~100V	0~5A
eTM-1560C	0~15V	0~60A
eTM-3020C	0~30V	0~20A
eTM-3030C	0~30V	0~30A
eTM-3050C	0~30V	0~50A
eTM-3060C	0~30V	0~60A
eTM-3080C	0~30V	0~80A
eTM-5020C	0~50V	0~20A
eTM-5030C	0~50V	0~30A
eTM-5050C	0~50V	0~50A
eTM-5060C	0~50V	0~60A
eTM-6010C	0~60V	0~10A
eTM-6015C	0~60V	0~15A
eTM-6020C	0~60V	0~20A
eTM-6030C	0~60V	0~30A
eTM-6050C	0~60V	0~50A
eTM-6060C	0~60V	0~60A
eTM-8030C	0~80V	0~30A
eTM-10010C	0~100V	0~10A
eTM-10020C	0~100V	0~20A
eTM-10030C	0~100V	0~30A
eTM-12020C	0~120V	0~20A
eTM-12030C	0~120V	0~30A
eTM-30100C	0~30V	0~100A
eTM-30150C	0~30V	0~150A
eTM-30200C	0~30V	0~200A
eTM-1505C	0~150V	0~5A
eTM-2002C	0~200V	0~2A
eTM-2003C	0~200V	0~3A
eTM-2005C	0~200V	0~5A
eTM-3002C	0~300V	0~2A
eTM-3005C	0~300V	0~5A
eTM-4002C	0~400V	0~2A
eTM-4003C	0~400V	0~3A
eTM-4005C	0~400V	0~5A
eTM-5005C	0~500V	0~5A
Display resolution
Voltage	<100V:10mV; ≥100V:100mV
Current	<100A:10mA; ≥100A:100mA
Set precision
Voltage	0.1V
Current	0.1A
size
Fuselage size	<2400W model: 330(D)×250(W)×155(H)mm / ≥2400W model: 410(D)×250(W)×155(H)mm
Package size	<2400W model: 420(D)×310(W)×220(H)mm / ≥2400W model: 497(D)×310(W)×220(H)mm
Weight
Net weight	<2400W model: about 5kg / ≥2400W model: about 7.5kg
Ripple and noise
≤1% (valid values)
Output parameters:(When using this specification, make sure to turn on the system for more than 15 minutes)
