eTM-2050P, Programmable DC Lab Bench Power Supply 20V 50A with 4-Digit LED Display, Output Switch Control, RS485 Communication Port

eTM-2050P, Programmable DC Lab Bench Power Supply 20V 50A with 4-Digit LED Display, Output Switch Control, RS485 Communication Port - Image 2

eTM-2050P, Programmable DC Lab Bench Power Supply 20V 50A with 4-Digit LED Display, Output Switch Control, RS485 Communication Port - Image 3

eTM-2050P, Programmable DC Lab Bench Power Supply 20V 50A with 4-Digit LED Display, Output Switch Control, RS485 Communication Port

Original price was: $1,199.00.Current price is: $599.00.

Four-digit LED display, intuitive monitoring of voltage, current, and output power
Voltage and current can be preconfigured
Automatic switching of constant voltage and constant current
One-button output switch control
Support five powerful protections: Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short Circuit protection
Featuring an RS485 interface with MODBUS RTU support and a SENSE compensation serial port for improved measurement accuracy
Six groups shortcut parameter storage function
List programmable sequence with hardware output
Smart cooling fan makes the instrument with low noise, longer life
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)
Standard configuration: power cord, certificate, AC voltage 220V (110V optional below 1200W), RS485 serial port, SENSE compensation serial port

Shipping Information: Delivery to the US and Europe takes 10-15 days via UPS, DHL, Royal Mail, etc.
Customer Support: Our customer service is available 24/7. Contact us anytime at [email protected] for assistance.
Shopping Security: Benefit from secure payment options, privacy assurance, reliable logistics, and purchase safeguards.

SKU eTM-2050P Categories Bench DC Power Supply Variable, DC Bench Power Supply Programmable Tags 1000W Bench Power Supplies, 20V Bench Power Supplies, High Current Bench Power Supplies, Switching Bench Power Supplies

Additional information

Current	30A
Voltage	100V
Wattage	1500-3000W

Product Parameters

Model	eTM-2050P
Input voltage	AC 220V + 10% (Optional: Fixed AC 110V Input; or AC 110V/220V Toggle Input )
Input frequency	50Hz/60Hz
Output voltage	Constant voltage value range: 0-20V, continuously adjustable
Output current	Constant current value range: 0-50A, continuously adjustable
Way of working	Automatic switching between constant voltage and constant current mode
Constant current indication	“I CC” light on
Constant voltage indication	“U CV” light on
Display resolution	Four-digit display: voltage 10mV, current 10mA
Load regulation	≤0.5%
Ripple & noise	≤1% (valid values)
Protective function	Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short Circuit protection
Working environment	5-40 celsius; relative humidity<80%
Storage temperature	0-70 celsius; relative humidity<70%
Height above sea level	≤2000m
Physical dimension	330250155mm (LengthWidthHeight)mm
Weight	5KG
Category	20V Bench DC Power Supply, 50A DC Bench Power Supply

Product Description

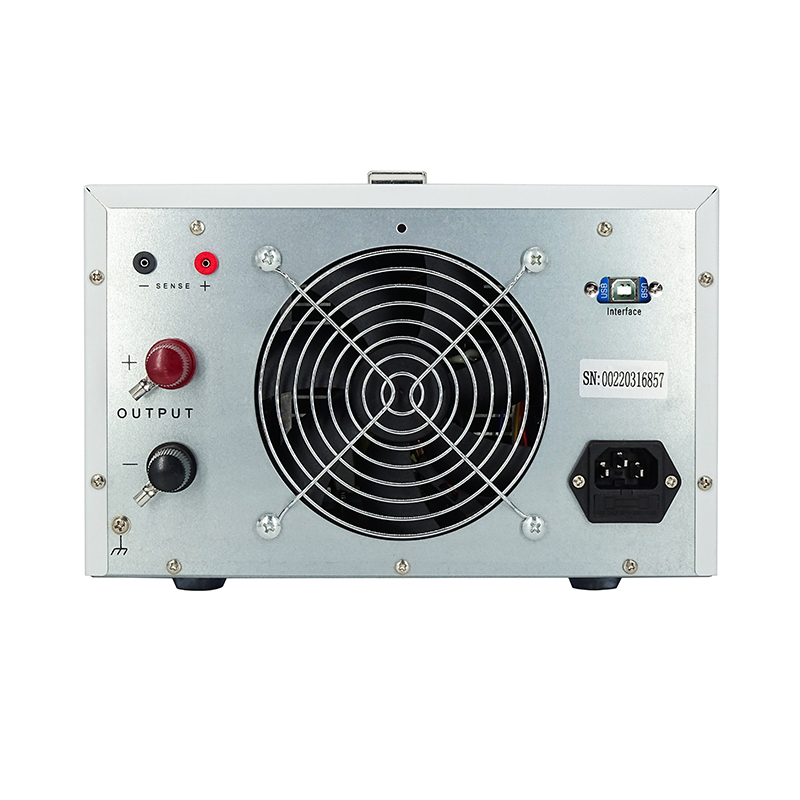

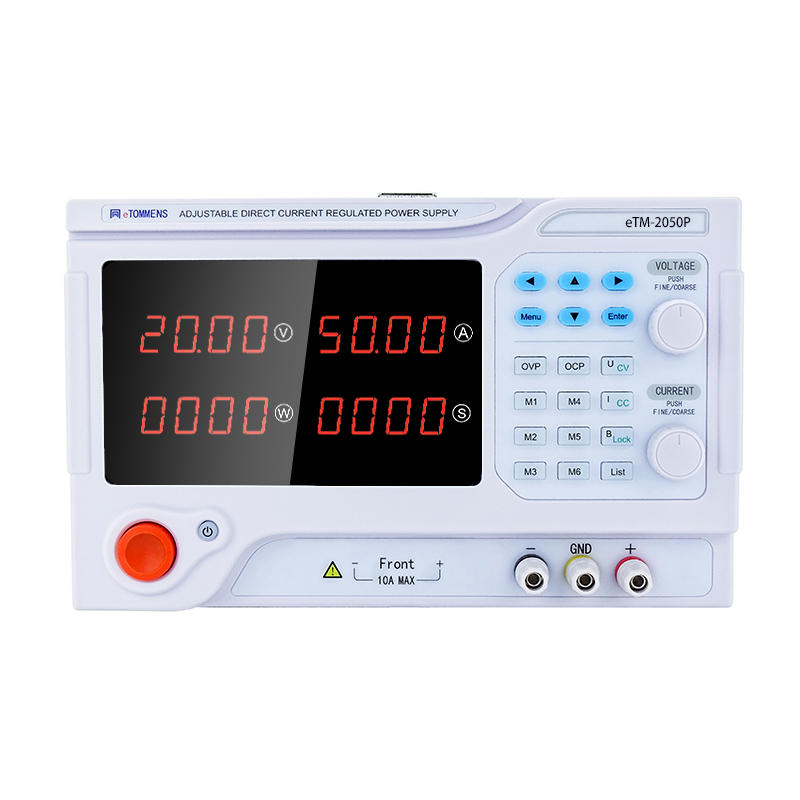

Introduction to Front & Back Panel

Dimensions Drawing

Specifications

Power Parameters
Model	Voltage	Current
eTM-1005P	0~100V	0~5A
eTM-1560P	0~15V	0~60A
eTM-2050P	0~20V	0~50A
eTM-3020P	0~30V	0~20A
eTM-3030P	0~30V	0~30A
eTM-3050P	0~30V	0~50A
eTM-3060P	0~30V	0~60A
eTM-3080P	0~30V	0~80A
eTM-5020P	0~50V	0~20A
eTM-5030P	0~50V	0~30A
eTM-5050P	0~50V	0~50A
eTM-5060P	0~50V	0~60A
eTM-6010P	0~60V	0~10A
eTM-6015P	0~60V	0~15A
eTM-6020P	0~60V	0~20A
eTM-6030P	0~60V	0~30A
eTM-6050P	0~60V	0~50A
eTM-6060P	0~60V	0~60A
eTM-8030P	0~80V	0~30A
eTM-10010P	0~100V	0~10A
eTM-10020P	0~100V	0~20A
eTM-10030P	0~100V	0~30A
eTM-12020P	0~120V	0~20A
eTM-12030P	0~120V	0~30A
eTM-30100P	0~30V	0~100A
eTM-30150P	0~30V	0~150A
eTM-30200P	0~30V	0~200A
eTM-1505P	0~150V	0~5A
eTM-2002P	0~200V	0~2A
eTM-2003P	0~200V	0~3A
eTM-2005P	0~200V	0~5A
eTM-3002P	0~300V	0~2A
eTM-3005P	0~300V	0~5A
eTM-4002P	0~400V	0~2A
eTM-4003P	0~400V	0~3A
eTM-4005P	0~400V	0~5A
eTM-5005P	0~500V	0~5A
Display resolution
Voltage	<100V:10mV; ≥100V:100mV
Current	<100A:10mA; ≥100A:100mA
Set precision
Voltage	0.1V
Current	0.1A
Size
Fuselage size	<2400W model: 330(D)×250(W)×155(H)mm / ≥2400W model: 410(D)×250(W)×155(H)mm
Package size	<2400W model: 420(D)×310(W)×220(H)mm / ≥2400W model: 497(D)×310(W)×220(H)mm
Weight
Net weight	<2400W model: about 5kg / ≥2400W model: about 7.5kg
Ripple and noise
≤1% (valid values)
Output parameters: (When using this specification, make sure to turn on the system for more than 15 minutes)
