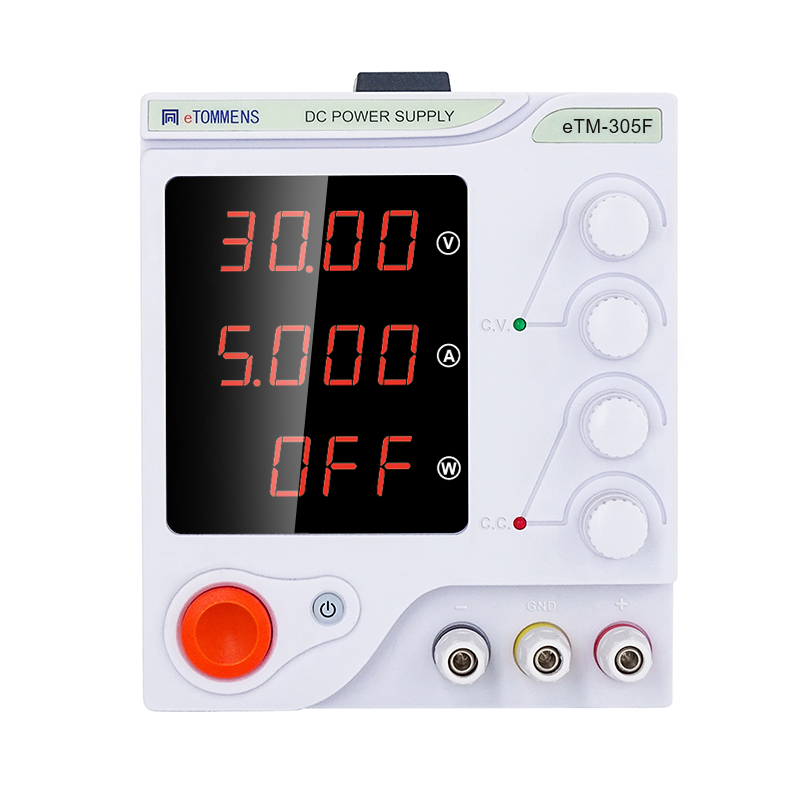

eTM-305F, 30V 5A Adjustable Switching DC Benchtop Power Supply with 4-Digit LED Display, Coarse and Fine Adjustment, Low Ripple and Noise

eTM-305F, 30V 5A Adjustable Switching DC Benchtop Power Supply with 4-Digit LED Display, Coarse and Fine Adjustment, Low Ripple and Noise - Image 2

eTM-305F, 30V 5A Adjustable Switching DC Benchtop Power Supply with 4-Digit LED Display, Coarse and Fine Adjustment, Low Ripple and Noise - Image 3

eTM-305F, 30V 5A Adjustable Switching DC Benchtop Power Supply with 4-Digit LED Display, Coarse and Fine Adjustment, Low Ripple and Noise

Original price was: $589.00.Current price is: $189.00.

Four-digit LED display, intuitive monitoring of voltage, current, output power, and decimal point automatically carry
Under output shutdown state, the voltage value and current value can be set in advance
Automatic switching of constant voltage and constant current
One-button output switch control
Support five powerful protections: Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short Circuit protection
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: On/Off/Read
Temperature control fan makes the instrument with low noise, longer life
Long-term full load, short circuit ignition arc drawing machine
Dual frequency technology, energy saving and environmental protection (switching power supply)

Shipping Information: Delivery to the US and Europe takes 10-15 days via UPS, DHL, Royal Mail, etc.
Customer Support: Our customer service is available 24/7. Contact us anytime at [email protected] for assistance.
Shopping Security: Benefit from secure payment options, privacy assurance, reliable logistics, and purchase safeguards.

SKU eTM-305F Category Bench DC Power Supply Variable Tags 30V 5A Bench Power Supplies, 30V Bench Power Supplies, 5A Bench Power Supplies, Switching Bench Power Supplies

Additional information

Current	5A
Voltage	30V
Wattage	0-300W

Product Parameters

Model	eTM-305F
Input Voltage	AC 220V + 10% (Optional: Fixed AC 110V Input; or AC 110V/220V Toggle Input )
Input Frequency	50Hz/60Hz
Output Voltage	Constant voltage value range: 0-30V, continuously adjustable
Output Current	Constant current value range: 0-5A, continuously adjustable
Way of Working	Automatic switching between constant voltage and constant current mode
Constant Pressure Indication	CV, green LED indicator
Constant Current Indication	CC, red LED indicator
Display Resolution	Four-digit display: voltage 10mV, current 1mA
Setting Accuracy	Voltage: ≤0.1%+5digits Current: ≤0.2%+10digits
Ripple Noise	Voltage: ≤10mVrms Current: ≤10mArms
Protective Function	Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short Circuit protection
Working Environment	Temperature: 5-40 celsius Relative Humidity: ≤80%
Storage Environment	Temperature: 5-30 celsius Relative Humidity: ≤60%
Height above Sea Level	≤2000m
Physical Dimension	280130165mm (LengthWidthHeight)mm
Weight	2.4KG

Product Description

Introduction to Front Panel

Introduction to Back Panel

Dimensions Drawing

Specifications

Power parameters
Model	Voltage	Current	Ripple
eTM-152F	0~15V	0~2A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-155F	0~15V	0~5A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-1520F	0~15V	0~20A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-305F	0~30V	0~5A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-3010F	0~30V	0~10A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-605F	0~60V	0~5A	Voltage: ≤15mVrms Current: ≤15mArms
eTM-1003F	0~100V	0~3A	Voltage: ≤18mVrms Current: ≤18mArms
eTM-1502F	0~150V	0~2A	Voltage: ≤20mVrms Current: ≤20mArms
Set Resolution
Voltage	10mV
Current	1mA
Set Precision
Voltage	≤0.1%+5 digits
Current	≤0.2%+10 digits
Size/Weight
280(D)×130(W)×165(H)mm / ≤2.2kg
