eTM-603DP, 60V 3A Regulated Linear DC Bench Power Supply Programmable with 4-Digit LED Display, Output Enable/Disable Button, Optional RS232/RS485/USB Port

eTM-603DP, 60V 3A Regulated Linear DC Bench Power Supply Programmable with 4-Digit LED Display, Output Enable/Disable Button, Optional RS232/RS485/USB Port

Original price was: $599.00.Current price is: $349.00.

Four-digit LED display, intuitive monitoring of voltage, current, output power, and decimal point automatically carry
Under output shutdown state, the voltage value and current value can be set in advance
Automatic switching of constant voltage and constant current
One-button output On/Off control
Support five powerful protections: Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short Circuit protection
Six groups shortcut parameter storage function
List programmable sequence with hardware output
Rear RS232/485/USB, upper computer software control (optional)
Communication interface function: programmable
Temperature control fan makes the instrument with low noise, longer life.
Long-term full load, short circuit ignition arc drawing machine (linear power supply)

Shipping Information: Delivery to the US and Europe takes 10-15 days via UPS, DHL, Royal Mail, etc.
Customer Support: Our customer service is available 24/7. Contact us anytime at [email protected] for assistance.
Shopping Security: Benefit from secure payment options, privacy assurance, reliable logistics, and purchase safeguards.

SKU eTM-603DP Categories Bench DC Power Supply Variable, DC Bench Power Supply Programmable Tags 60V Bench Power Supplies, Linear Bench Power Supplies

Additional information

Current	3A
Voltage	60V
Wattage	0-300W

Product Parameters

Model	eTM-603DP
Input Voltage	AC 220V + 10% (Optional: Fixed AC 110V Input; or AC 110V/220V Toggle Input )
Input Frequency	50Hz/60Hz
Output Voltage	Constant voltage value range: 0-60V, continuously adjustable
Output Current	Constant current value range: 0-3A, continuously adjustable
Way of Working	Automatic switching between constant voltage and constant current mode
Constant Pressure Indication	CV, green LED indicator
Constant Current Indication	CC, red LED indicator
Display Resolution	Four-digits display: voltage 10mV, current 1mA
Setting Accuracy	Voltage: ≤0.01%+3digits Current: ≤0.1%+3digits
Ripple Noise	Voltage: ≤8mVrms Current: ≤10mArms
Protective Function	Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short Circuit protection
OVP	0-61V
OCP	0-3.5A
Working Environment	Temperature: 5-40 celsius Relative Humidity: ≤80%
Storage Environment	Temperature: 5-30 celsius Relative Humidity: ≤60%
Height above Sea Level	≤2000m
Physical Dimension	280130165mm (LengthWidthHeight)mm
Weight	4.5KG
Category	60V DC Bench Power Supply

Product Description

Introduction to Front Panel

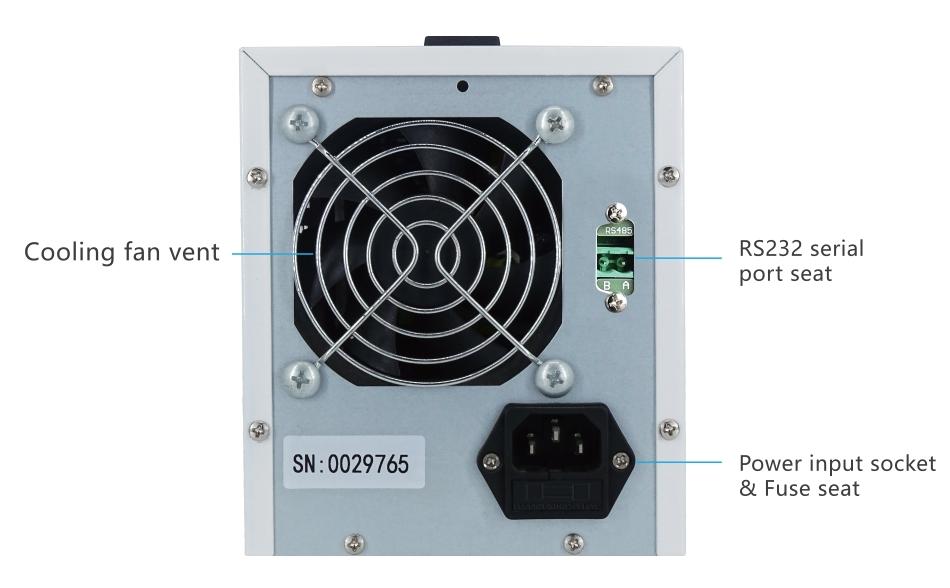

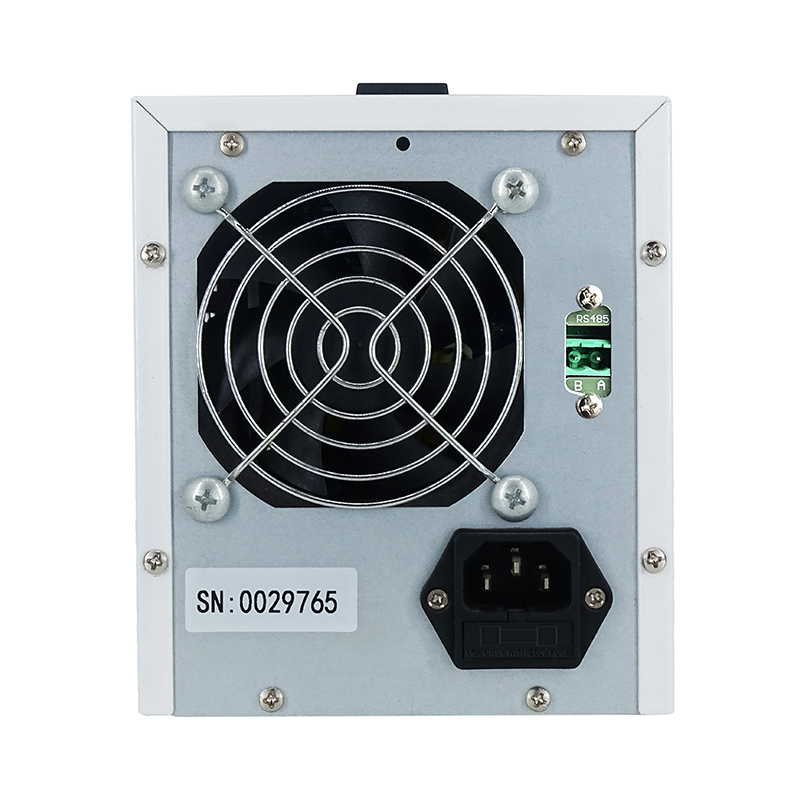

Introduction to Back Panel

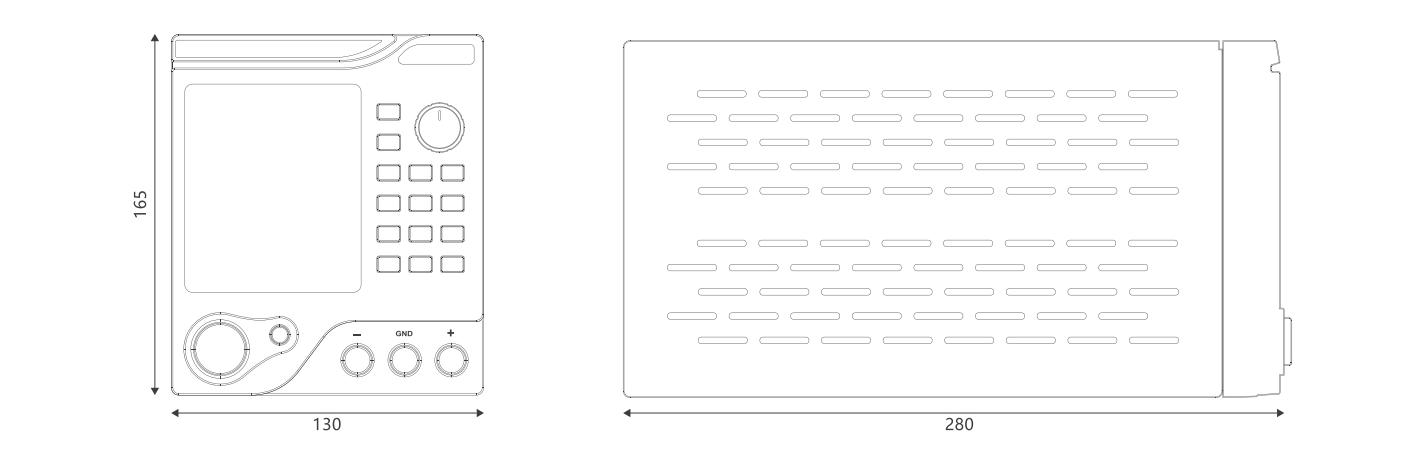

Dimensions Drawing

Specifications

Power parameters
Model	Voltage	Current	Ripple
eTM-303DP	0~30V	0~3A	Voltage: ≤8mVrms Current: ≤10mArms
eTM-305DP	0~30V	0~5A	Voltage: ≤8mVrms Current: ≤10mArms
eTM-603DP	0~60V	0~3A	Voltage: ≤8mVrms Current: ≤10mArms
eTM-605DP	0~60V	0~5A	Voltage: ≤8mVrms Current: ≤10mArms
eTM-1501DP	0~150V	0~1A	Voltage: ≤8mVrms Current: ≤10mArms
Set Resolution
Voltage	10mV
Current	1mA
Set Precision
Voltage	≤0.1%+5 digits
Current	≤0.2%+10 digits
Size/Weight
280(D)×130(W)×165(H)mm / ≤4.5kg
