eTM-605MP, Mini Programmable DC Bench Top Regulated Power Supply 0-60V 0-5A with USB Interface, CV/CC Mode Automatic Conversion, Remote Control

eTM-605MP, Mini Programmable DC Bench Top Regulated Power Supply 0-60V 0-5A with USB Interface, CV/CC Mode Automatic Conversion, Remote Control - Image 2

eTM-605MP, Mini Programmable DC Bench Top Regulated Power Supply 0-60V 0-5A with USB Interface, CV/CC Mode Automatic Conversion, Remote Control

Original price was: $659.00.Current price is: $349.00.

Four-digit LED display for intuitive monitoring of voltage, current, and output power.
Output voltage and current can be preset.
High precision resolution of 10mV/1mA.
Support 5 powerful protections: Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short circuit protection.
Overvoltage and overcurrent protection thresholds can be set from 0 to the maximum rated value.
Three groups of shortcut parameter storage.
Intelligent temperature-controlled fan with low noise operation.
Dual frequency technology, energy saving and environmental protection (switching power supply).
Long-term full load, short circuit ignition arc drawing machine.
Optional RS232, RS485, and USB serial communication interfaces are available, supporting the MODBUS RTU protocol.

Shipping Information: Delivery to the US and Europe takes 10-15 days via UPS, DHL, Royal Mail, etc.
Customer Support: Our customer service is available 24/7. Contact us anytime at [email protected] for assistance.
Shopping Security: Benefit from secure payment options, privacy assurance, reliable logistics, and purchase safeguards.

SKU eTM-605MP Categories Bench DC Power Supply Variable, DC Bench Power Supply Programmable Tags 300W Bench Power Supplies, 5A Bench Power Supplies, 60V 5A Bench Power Supplies, 60V Bench Power Supplies, Mini Benchtop Power Supplies, Switching Bench Power Supplies

Additional information

Current	5A
Voltage	60V
Wattage	0-300W

Product Parameters

Model	eTM-605MP
Input voltage	AC 220V + 10% (Optional: Fixed AC 110V input; or AC 110V/220V Toggle Input )
Input frequency	50Hz/60Hz
Output voltage	Constant voltage value range: 0-60V, continuously adjustable
Output current	Constant current value range: 0-5A, continuously adjustable
Way of working	Automatic switching between constant voltage and constant current mode
Display resolution	Four-digit display: voltage 10mV, current 1mA
Display accuracy	≤0.1%+5digits
Ripple noise	≤10mVrms ≤10mArms
Protective function	Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, and Short circuit protection.
OVP	0-61V
OCP	0-5.5A
Working environment	0-40 celsius; relative humidity<80%
Storage temperature	-20-60 celsius; relative humidity<80%
Height above sea level	≤2000m
Physical dimension	80150230mm (LengthWidthHeight)mm
Weight	2KG
Category	60V DC Bench Power Supply, Small Bench DC Power Supply

Product Description

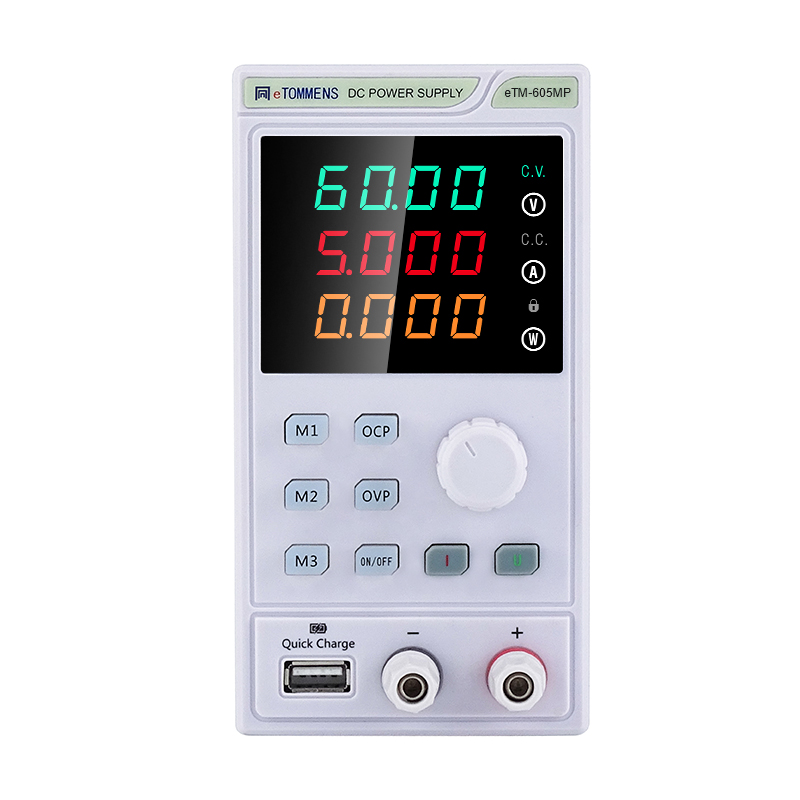

Introduction to Front & Back Panel

Dimensions Drawing

Specifications

Power Parameters
Model	Voltage	Current	Ripple
eTM-152MP	0~15V	0~2A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-155MP	0~15V	0~5A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-1520MP	0~15V	0~20A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-305MP	0~30V	0~5A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-3010MP	0~30V	0~10A	Voltage: ≤10mVrms Current: ≤10mArms
eTM-605MP	0~60V	0~5A	Voltage: ≤15mVrms Current: ≤15mArms
eTM-1003MP	0~100V	0~3A	Voltage: ≤18mVrms Current: ≤18mArms
eTM-1502MP	0~150V	0~2A	Voltage: ≤20mVrms Current: ≤20mArms
Set Resolution
Voltage	10mV
Current	1mA
Set Precision
Voltage	≤1% + 5digits
Current	≤1% + 10digits
Size/Weight
230(D)x80(W)x150(H)mm/about 1.95kg
