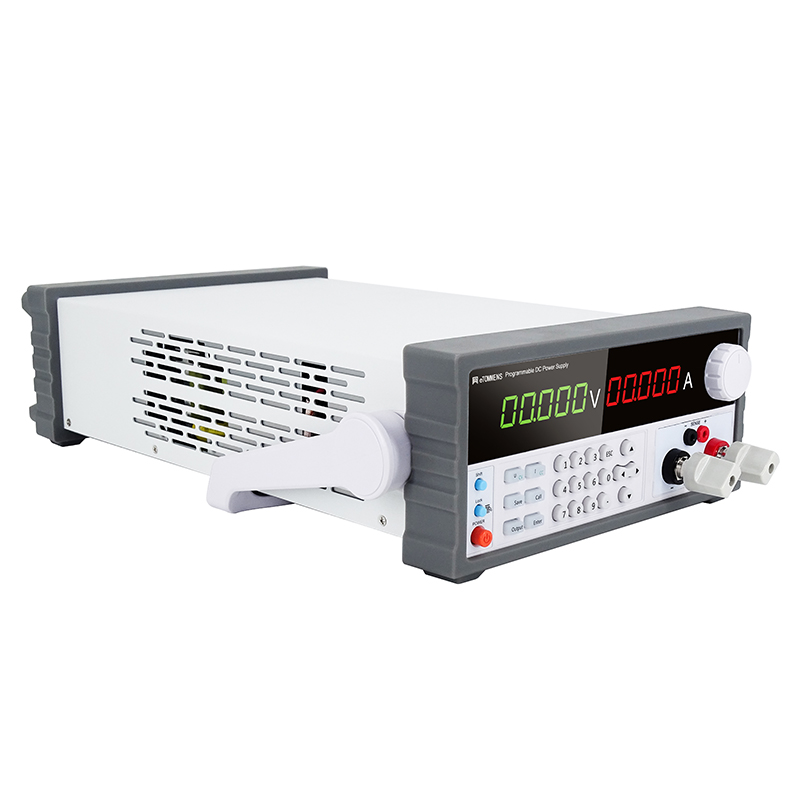

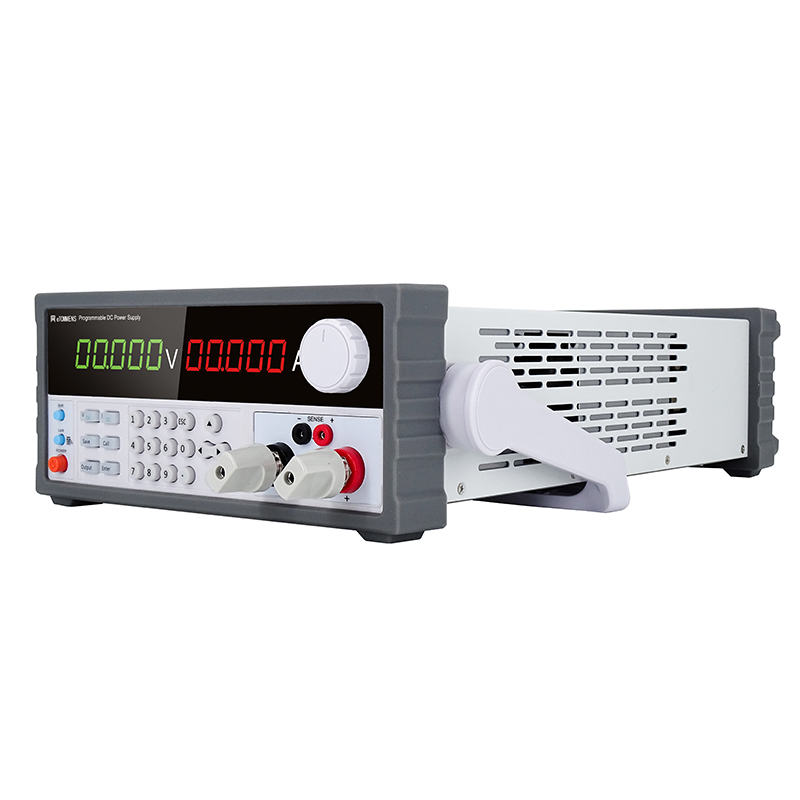

eTM-K6015SPD, Programmable Bench Switching DC Power Supply Variable 60V 15A with High Precision 5-Digit Digital Tube Display, PC Software Control

eTM-K6015SPD, Programmable Bench Switching DC Power Supply Variable 60V 15A with High Precision 5-Digit Digital Tube Display, PC Software Control

Original price was: $1,599.00.Current price is: $1,049.00.

Window List sequence test technology, can store/recall 100 sets of voltage and current data
Multiple power-up modes are available
Front + rear dual serial port mode, convenient for developers and integrated devices
Compatible with standard Modbus and SCPI protocols
Optional display of power or load resistance values with low resistance measurement
Support five powerful protections, including overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection
High resolution, high accuracy
Multiple trigger sources (command, level, pulse, external), trigger mode selection
VSelf voltage auto-calibration function reduces deviations from the set voltage value
The rear is equipped with RS232 interface as standard, RS485 interface as standard, USB interface as optional and Ethernet interface as possible
Optional buzzer to suit many different occasions
Standard Configuration: power cord, certificate of compliance, wiring 2.0 terminal, CD, communication serial port: Default RS232, Optional RS485 or USB (Choose one), RNB 5.5-8 terminal, AC input voltage 220V.

Shipping Information: Delivery to the US and Europe takes 10-15 days via UPS, DHL, Royal Mail, etc.
Customer Support: Our customer service is available 24/7. Contact us anytime at [email protected] for assistance.
Shopping Security: Benefit from secure payment options, privacy assurance, reliable logistics, and purchase safeguards.

Additional information

Wattage	0-300W, 300-900W, 1000-1500W, 1500-3000W, 4000-6000W, 7000-10000W, 10KW OR MORE
Current	100A, 10A, 11A, 150A, 15A, 1A, 200A, 20A, 2A, 30A, 3A, 50A, 5A, 60A, 6A, 80A
Voltage	15V, 20V, 30V, 40V, 50V, 60V, 80V, 100V, 120V, 150V, 160V, 200V, 220V, 250V, 300V, 400V, 500V, 600V, 800V
Display	5-digit, 6-digit

Product Parameters

Model	eTM-K6015SPD
Power supply type	Switching DC Power Supply
Input voltage	AC 220V + 10%
Input frequency	50Hz/60Hz
Output voltage	Constant voltage value range: 0-60V, continuously adjustable
Output current	Constant current value range: 0-15A, continuously adjustable
Way of working	Automatic switching between constant voltage and constant current mode
Display resolution	Five-digit display: voltage 1mV, current 1mA
Reading accuracy	±(0.02% of reading+5mV)(25±5℃)；±(0.05% of reading+10mA)(25±5℃)
Ripple & noise	≤5mVrms,30mVpp ≤10mArms
Protective function	Overvoltage protection, Overcurrent protection, Overpower protection, Overtemperature protection, Short circuit protection
Working environment	0-40 celsius; relative humidity<80%
Storage temperature	-10-70 celsius; relative humidity<70%
Height above sea level	≤2000m
Physical dimension	40021589mm (LengthWidthHeight)mm
Weight	4.5KG
Category	30V DC Bench Power Supply, 20A Bench DC Power Supply

Product Description

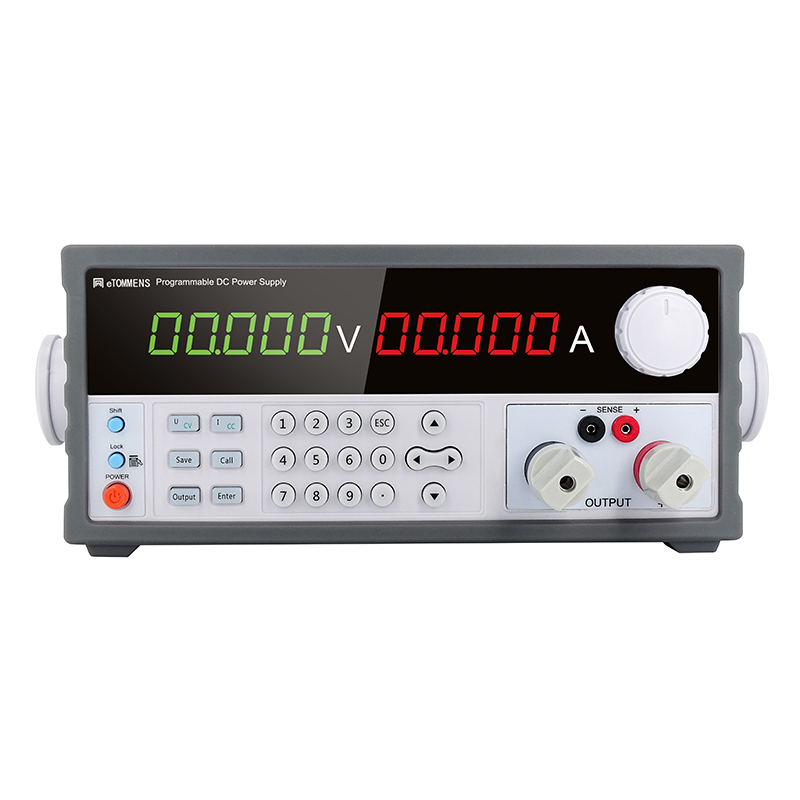

Introduction to Front Panel

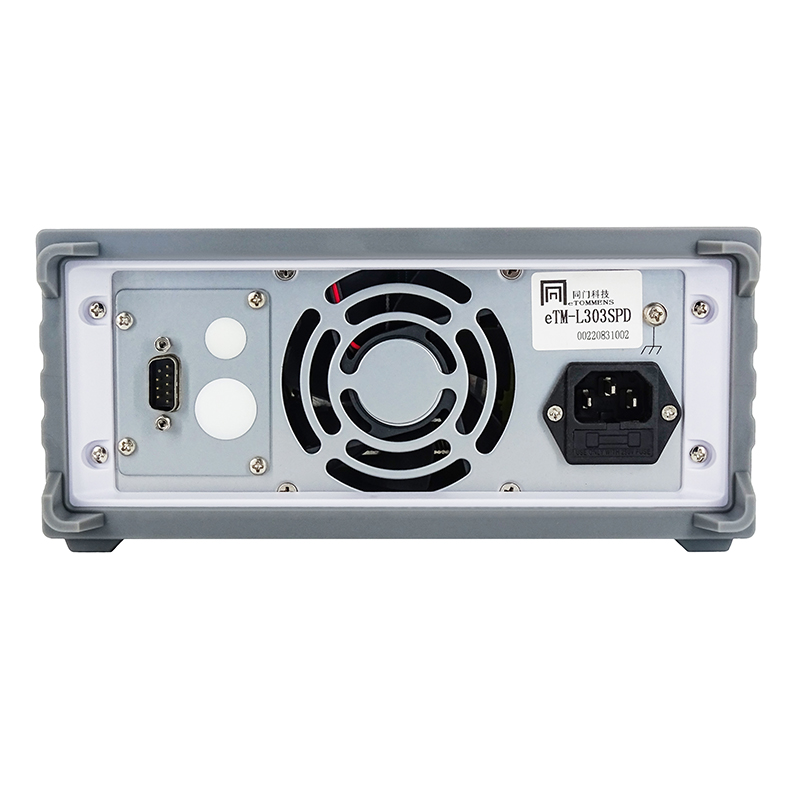

Introduction to Back Panel

Dimensions Drawing

Product Features

Window List sequence test technology, can store/recall 100 sets of voltage and current data
Multiple power-up modes are available
Front + rear dual serial port mode, convenient for developers and integrated devices
Compatible with standard Modbus and SCPI protocols
Optional display of power or load resistance values with low resistance measurement
Support five powerful protections, including overvoltage protection, overcurrent protection, overpower protection, overtemperature protection, and short circuit protection
High resolution, high accuracy
Multiple trigger sources (command, level, pulse, external), trigger mode selection
VSelf voltage auto-calibration function reduces deviations from the set voltage value
The rear is equipped with RS232 interface as standard, RS485 interface as standard, USB interface as optional and Ethernet interface as possible
Optional buzzer to suit many different occasions

Specifications

5-bit Power Parameters
Model	Voltage	Current
eTM-K1560SPD	0~15V	0~60A
eTM-K3020SPD	0~30V	0~20A
eTM-K3030SPD	0~30V	0~30A
eTM-K6010SPD	0~60V	0~10A
eTM-K6015SPD	0~60V	0~15A
eTM-K8011SPD	0~80V	0~11A
6-bit Power Parameters
Model	Voltage	Current
eTM-K1560SPD+	0~15V	0~60A
eTM-K3020SPD+	0~30V	0~20A
eTM-K3030SPD+	0~30V	0~30A
eTM-K6010SPD+	0~60V	0~10A
eTM-K6015SPD+	0~60V	0~15A
eTM-K8011SPD+	0~80V	0~11A
Voltage Output
Ripples and Noise	5mVrms, 30mVpp
Precision Setting	±(0.03% of reading + 10mV)(25±5°C)
Resolution Setting	1mV (5-bit) / 0.1mV (6-bit)
Current Output
Current Effect	≤0.2% + 3mA
Load Effect	≤0.2% + 5mA
Ripples and Noise	≤10mArms
Precision Setting	±(0.03% of reading + 10mA)(25±5°C)
Resolution Setting	1mA (5-bit) / 0.1mA (6-bit)
Display
Voltage Resolution	1mV (5-bit) / 0.1mV (6-bit)
Current Resolution	1mA (5-bit) / 0.1mA (6-bit)
Readability	±(0.02% of reading + 5mV)(25±5°C); ±(0.05% of reading + 10mA)(25±5°C)
Protection
Overvoltage, Overcurrent, Overpower, Overtemperature, Short Circuit
Programming Interface
RS232, USB, 485 (Matching), LAN Interface, Internal Hard Disk. Supports SCPI or Modbus Protocol
Size & Weight
Size	400(D)x215(W)x89(H)mm
Weight	4.5kg
