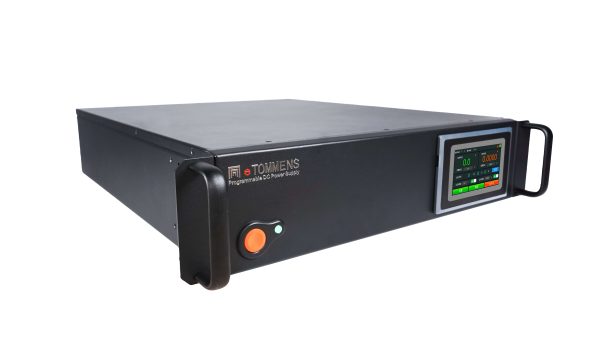

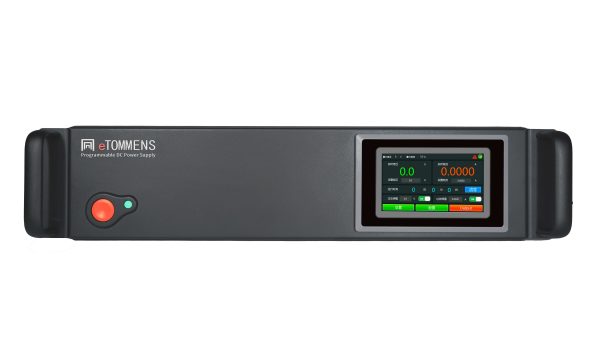

eTM-R2000V1APH, High Voltage DC Bench Power Supply Variable 2000V 1A with Touch Screen, Remote Control, RS232/RS485/USB Communication Port

eTM-R2000V1APH, High Voltage DC Bench Power Supply Variable 2000V 1A with Touch Screen, Remote Control, RS232/RS485/USB Communication Port - Afbeelding 2

eTM-R2000V1APH, High Voltage DC Bench Power Supply Variable 2000V 1A with Touch Screen, Remote Control, RS232/RS485/USB Communication Port

Oorspronkelijke prijs was: $2,599.00.Huidige prijs is: $2,199.00.

Higher Voltage Output Range: Meets your high voltage requirements.
4.3-Inch Touch Screen: Simple and intuitive operation.
Support Seven Powerful Safety Protections: Overvoltage Protection, Overcurrent Protection, Overpower Protection, Undervoltage Protection, Undercurrent Protection, Overtemperature Protection, and Short Circuit Protection.
Configurable CC/CV Priority Function: Effectively reduces voltage or current overshoot.
High Precision Output with Low Ripple: Ensures stable performance.
Wide Applications: Suitable for electric tools, electric bicycles, drones, semiconductors, and medical electronic devices.
Supports MODBUS and SCPI communication protocols.
Standard Configuration: Power Cord, User Manual, RS485 Communication Terminal, RS232 Communication Line, USB Communication Line, Output Terminal, AC Input Voltage 220V

Verzendinformatie: Levering naar de VS en Europa duurt 10-15 dagen via UPS, DHL, Royal Mail, enz.
Klantenservice: Onze klantenservice is 24/7 beschikbaar. Neem op elk moment contact met ons op [email protected] voor assistentie.
Veilig winkelen: Profiteer van veilige betaalopties, privacygarantie, betrouwbare logistiek en aankoopwaarborgen.

SKU eTM-R2000V1APH Categorieën DC-voeding voor bank Variabel, DC Bench voeding programmeerbaar, Bench voor hoogspanningsgelijkstroomvoeding Label HV Bench voedingen

Aanvullende informatie

Wattage	1000-1500W
Weergave	5 cijfers
Huidige	100A

Productparameters

Model	eTM-R2000V1APH
Ingangsspanning	WISSELSTROOM 220V + 10%
Ingangsfrequentie	47-63Hz
Uitgangsspanning	Constant voltage value range: 0-2000V, continuously adjustable
Uitgangsstroom	Constant current value range: 0-1A, continuously adjustable
Manier van werken	Automatisch schakelen tussen constante spanning en constante stroommodus
Resolutie weergeven	4.3-inch Touch Screen: voltage 100mV, current 0.1mA
Load stability	≤0.5%
Ripple & noise	≤5%
Beschermende functie	Overvoltage Protection, Overcurrent Protection, Overpower Protection, Undervoltage Protection, Undercurrent Protection, Overtemperature Protection, and Short Circuit Protection
Werkomgeving	Temperature: 0-40 celsius Relative Humidity: 10%-90%
Opslagtemperatuur	Temperature: -20-70 celsius Relative Humidity: 10%-90%
Fysieke dimensie	430110560mm (LengthWidthHeight)mm
Gewicht	12KG

Product Beschrijving

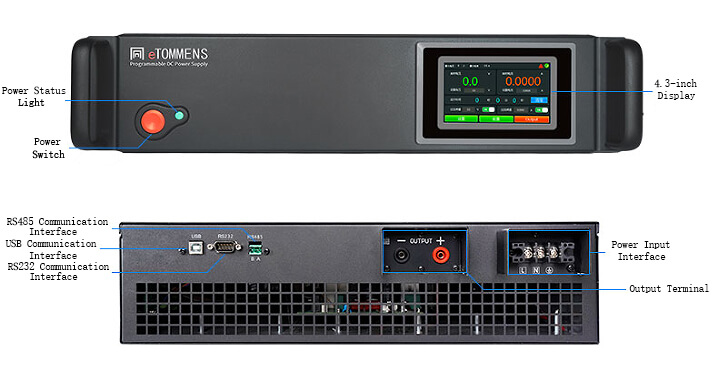

Introduction to Front & Back Panel

Afmetingen Tekening

Specificaties

Vermogen Parameters
Model	Spanning	Huidige
eTM-R1000V1APH	0~1000V	0~1A
eTM-R1000V1A5PH	0~1000V	0~1.5A
eTM-R1000V2APH	0~1000V	0~2A
eTM-R1000V3APH	0~1000V	0~3A
eTM-R1000V4A5PH	0~1000V	0~4.5A
eTM-R2000V1APH	0~2000V	0~1A
eTM-R2000V1A5PH	0~2000V	0~1.5A
eTM-R3000V1APH	0~3000V	0~1A
eTM-R3000V1A5PH	0~3000V	0~1.5A
Resolutie
Spanning	100mV
Huidige	0.1mA
Nauwkeurigheid instellen
Spanning	FS0.05％±RD0.05%
Huidige	FS0.1％±RD0.1%
Maat
Rompgrootte	430(D)×110(W)×560(H) mm
Gewicht
Netto gewicht	8-16kg
Rimpeling en ruis
≤0.5%FS
